Airflow Meters
Air Velocity and Airflow Measurement
Precise Airflow Supply And Measurement

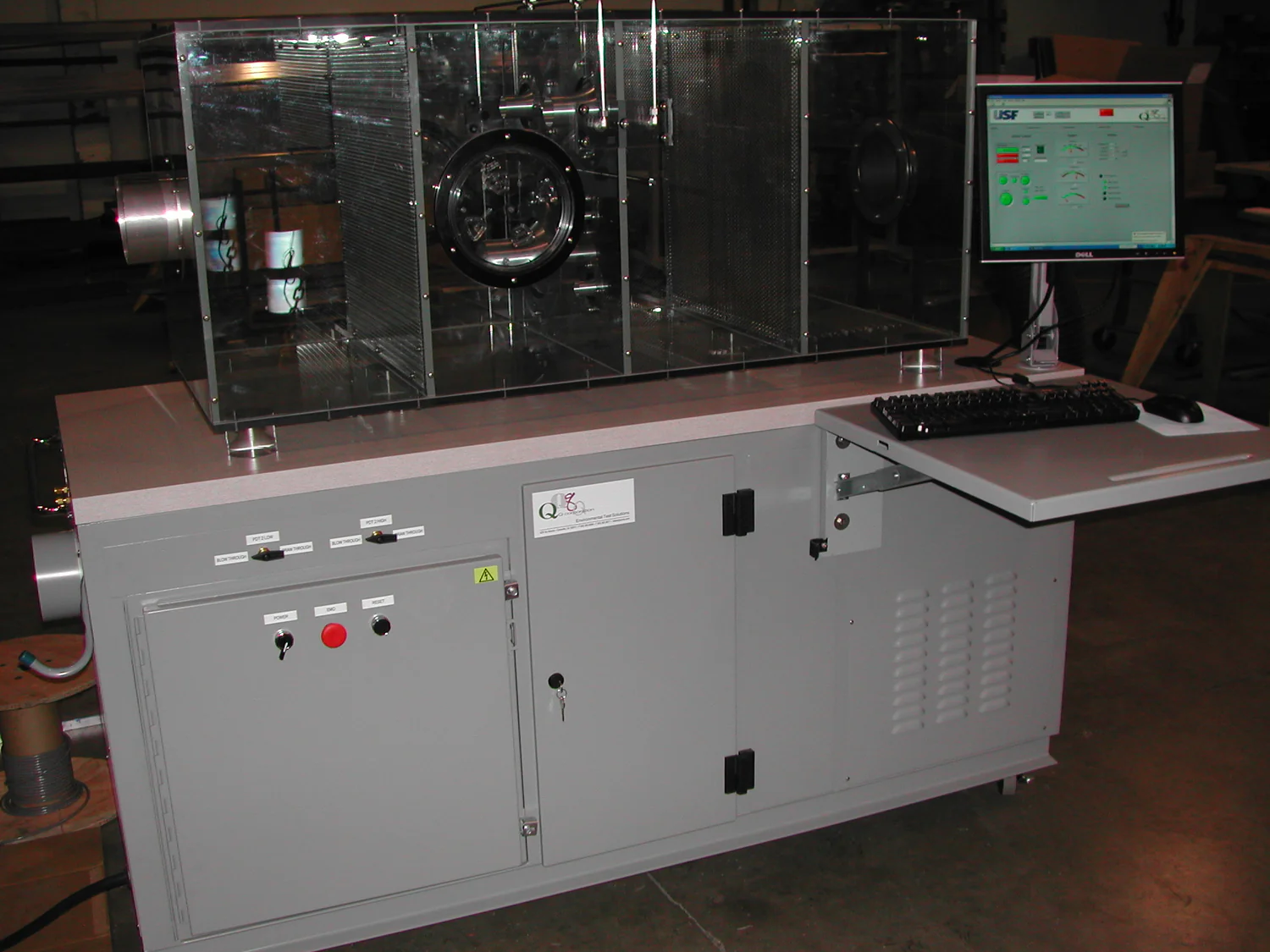

Our airflow meters are custom built according to the ASHRAE 41.2 standard. Used for precise airflow measurement to a variety of test pieces. Can also be used for automotive cabin leak testing, developing fan performance, and flow versus pressure curves. It can be coupled with an Air Supply System for conditioned temperature and humidity. Optionally can include the ability to apply/perform back-pressure control to simulate product pressure drop.
Technical Specifications
-
Minimum Airflow: Up to 1200,000 CFM+
Typical Airflow Turndown: 20:1
Product Pressure Differential: 2” to 10” H2O
Airflow Measurement: Inlet Temperature / Inlet Humidity
Pressure Sensor(s): Nozzle Differential Pressure, Barometric Pressure, Product Inlet Pressure
Humidity Sensor(s): RH Capacitive Element -
Airflow: Up to 10,000 CFM+
Airflow Ranges: Turndown 20:1
Product Pressure Differential: 2” to 10” H2O
Variable Measurement Includes: Inlet Temperature / Inlet Humidity
Pressure Sensor(s): Nozzle Differential Pressure, Barometric Pressure, Product Inlet Pressure
Humidity Sensor(s): RH Capacitive Element -
Material: Lexan Plastic, Painted Cold Rolled Steel – Continuously Welded

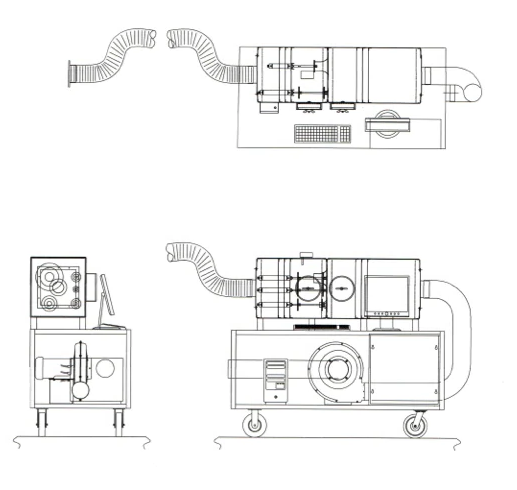

Sizing: Dimensions according to ASHRAE 41.7, AMCA 210 -
Control: Manual of Fully Automatic
Control Interface: Manual Adjustment, PLC-based touch screen HMI or LabVIEW software with PC interface
