Conditioned Fluid Supply

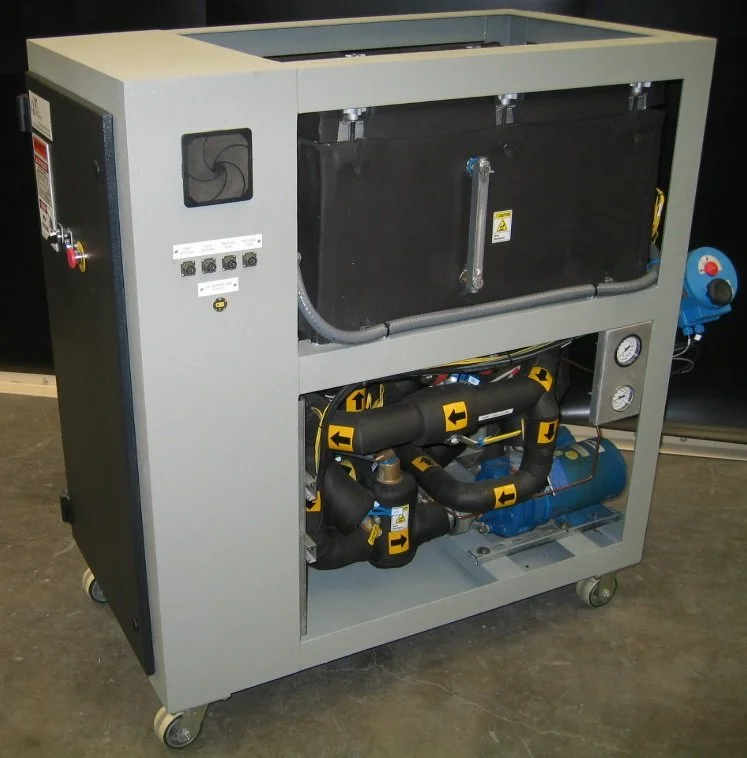

Conditioned oil supply cart

Overview

Ideal for any/all testing applications requiring precision controlled fluid supply to a unit under test. This would include Heater Core, Radiator, Charge Air Coolers, HEV cooling systems and any other fluid type heat exchanger devices. Ideal as a supplemental addition to perform geothermal and water source heat pump testing, indicative of ISO 13256.1 & 2. Custom designed chiller and heating of water/glycol fluids per customer specification. Often used in calorimetry, component pressure drop evaluations, and simulating cooling water supply for engine testing. Options include the ability to apply a blanket pressure to elevate boiling point temperatures.

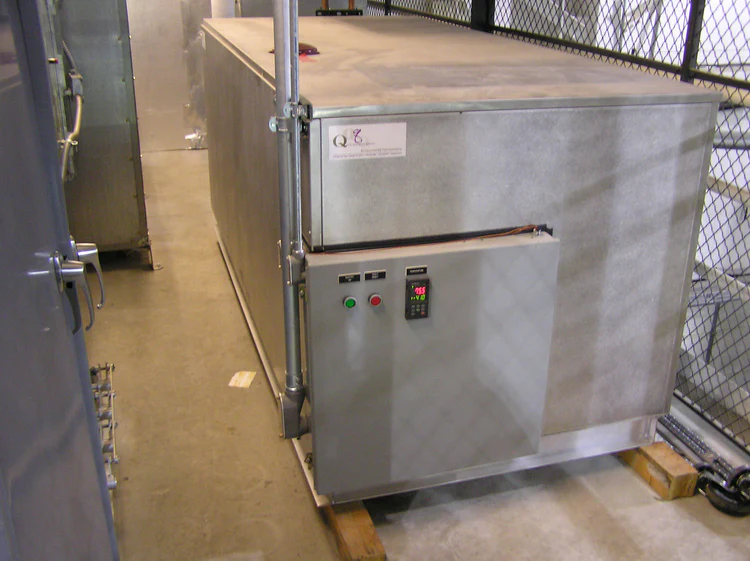

Fluid supply cart

Features

  • Variable speed supply pump, enabling set-point control of fluid flow through test piece or process.

  • Precision temperature control set-point by electronically modulated heaters. Internal by-pass standard in all of our fluid modules.

  • Flow sensing devices typically include Coriolis, Magnetic or Turbine, with or without Visual Display.

  • Pressure setting by automatic or semi automatic regulator.

  • Sensors added as needed to provide optimum value of data points.

  • Designed for compactness and portability.

  • Used as a stand alone system or integrated with other Q Corporation supporting modules, including airflow supply systems.

Technical Specifications

  • Flow: Up to 250+ gpm
    Flow Turndown: 10:1
    Maximum UUT Pressure: 15 psid to 30 psid
    Flow Sensor Device: Coriolis, Turbine or Visual Display

  • Heating Capacity: 0 to 225 kW+
    Cooling Capacity: 0 to 225 kW+
    Temperature Range: -40 to 250 F
    Temperature Sensor(s): RTD or Thermocouple

    • Manual or fully automatic PLC-based control algorithms

    • Real time display of measured and calculated variables,

    • Multi format, multi axis, multi pen graphing capabilities

    • Complete control interface to equipment

    • Calibration support for internal or external traceable calibration

    • Multi test automated sequencing

    • Password Protection

    • Real time calculation of all required values

    • Data storage for export to external data analysis

    • Ethernet, MODBUS and SQL server communications

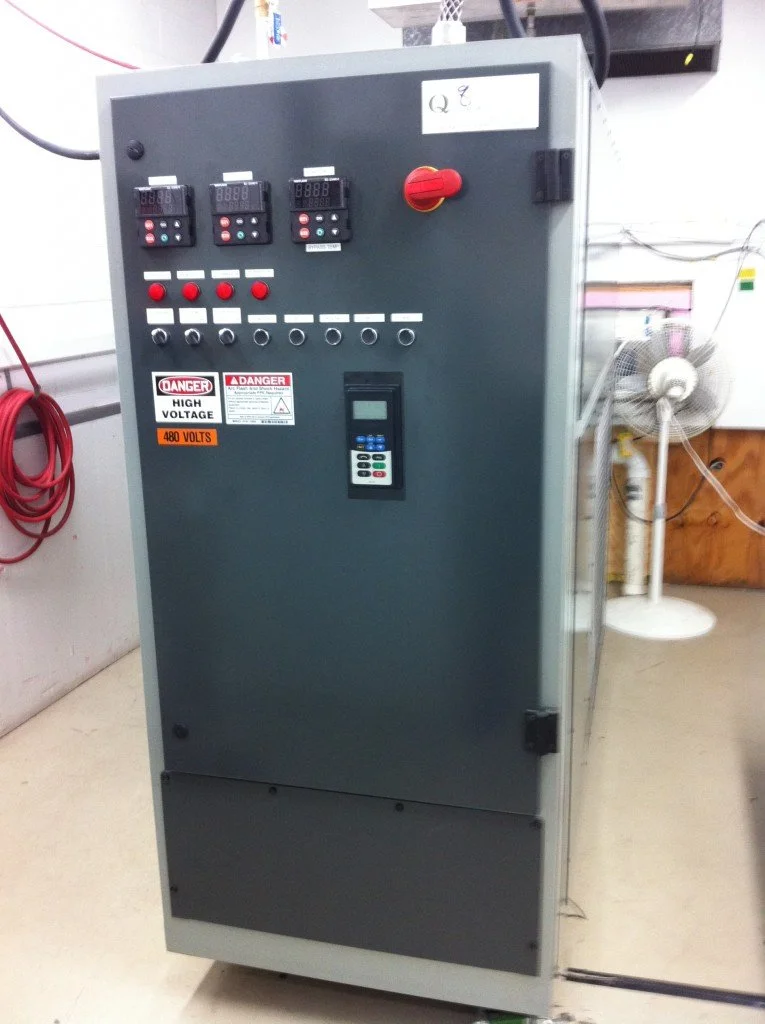

Fluid supply cart control panel
