Air to Fluid Calorimeter

Radiators | Heater Cores | Brazed Plates

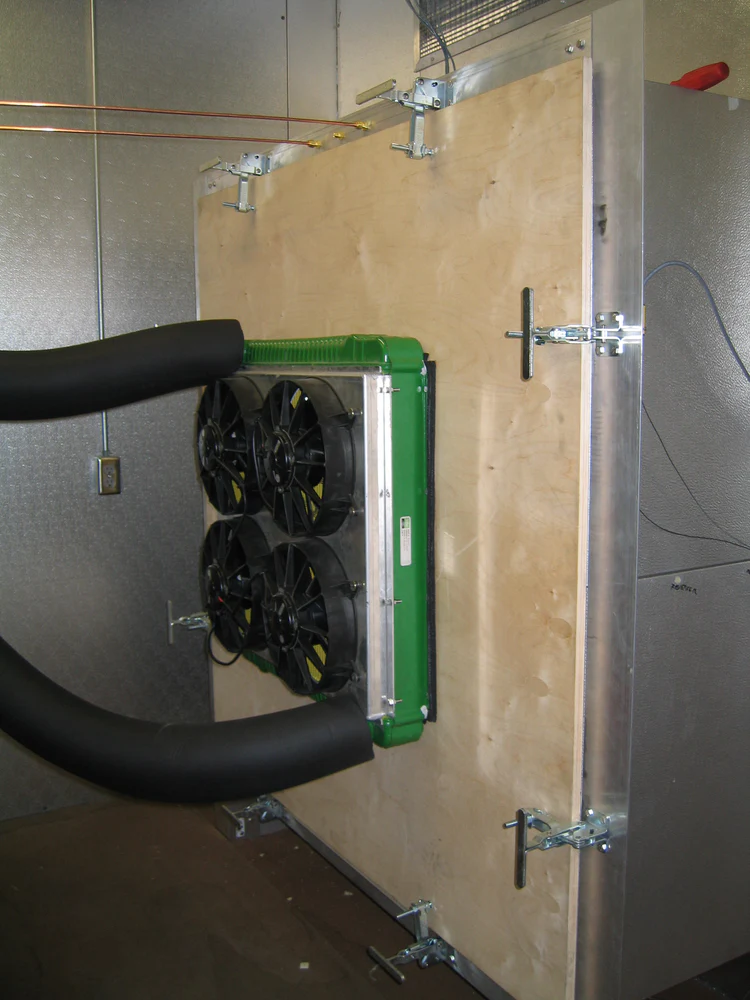

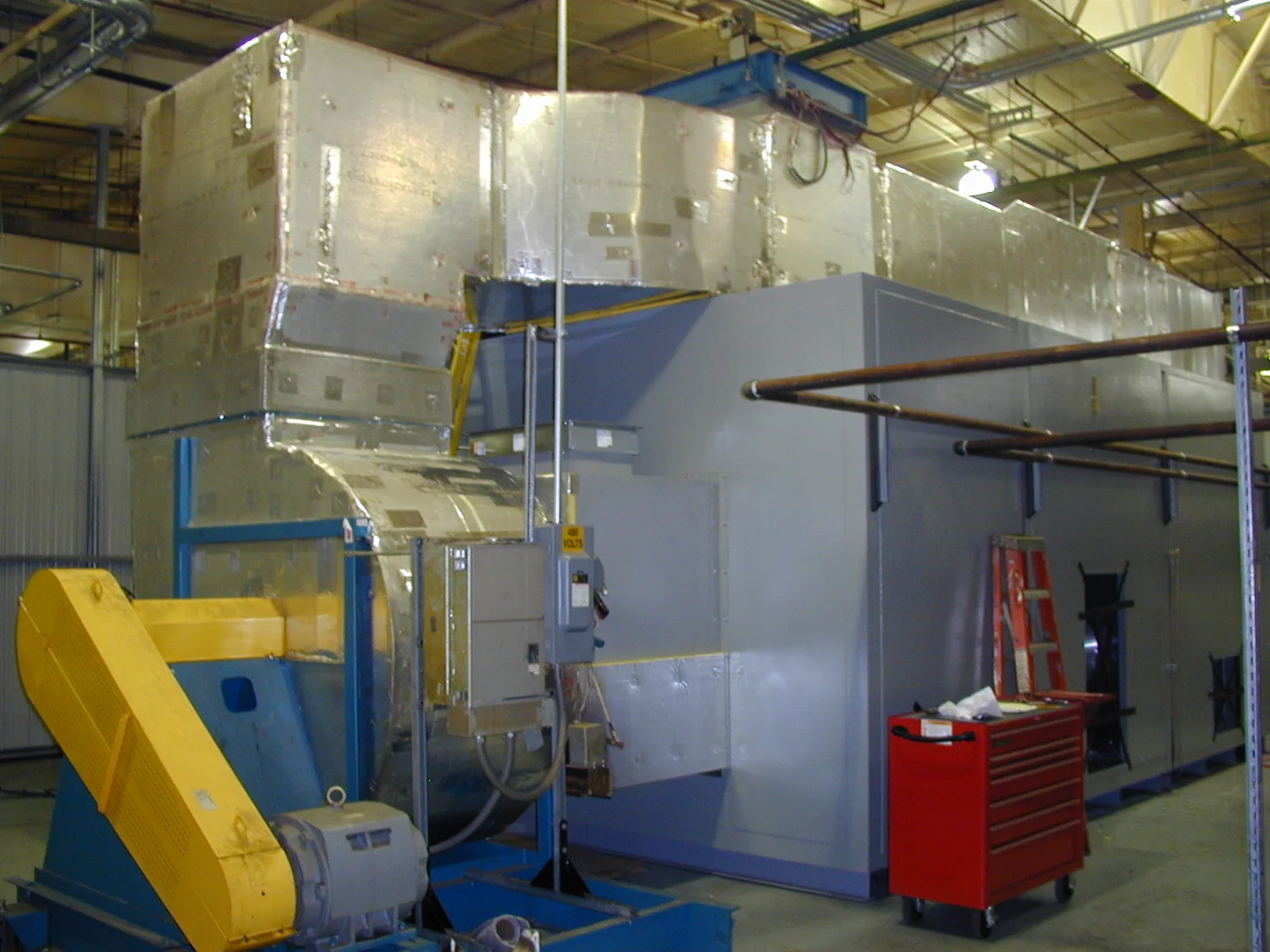

Radiator calorimeter chamber

Heater Core and Radiator Calorimeters

  • Exactly measure, confirm, and report heat transfer characteristics

  • Precisely control flow and temperature supplies to achieve testing

  • Measure air side and fluid side pressure drops

  • Used as a stand alone system or integrated with other supporting modules including evaporator for complete heater evaporator and blower (HEB) testing

  • Data collection and computation through a PLC-based touch screen HMI, or available through LabVIEW automation software packages

  • For debris impact studies, an integrated “dust” system option for qualifying pressure drop and heat transfer degradation with dust intrusion

Technical Specifications

  • Capacity: Up to 100,000 BTUH
    Airflow: Up to 1,000 cfm
    Coolant Flow: Up to 20 gpm
    Air Temperature: -40 F to 100F
    Liquid Temperature: 0 to 248 F (limited by freezing and boiling points)
    Airflow Measurement: Ashrae 41.2 Meter, V-Cone or pitot array
    Fluid Flow Measurement: Coriolis
    Temperature Measurement: RTD

  • Capacity: Up to 750,000 BTUH
    Airflow: Up to 15,000 cfm
    Coolant Flow: Up to 150 gpm
    Air Temperature: -40 F to 140 F
    Liquid Temperature: 0 F to 248 F (limited by freezing and boiling points)
    Airflow Measurement: Ashrae 41.7 Meter or V-Cone or pitot array
    Fluid Flow Measurement: Coriolis
    Temperature Measurement: RTD

    • Fully automatic PLC-based control algorithms

    • Real time display of measured and calculated variables,

    • Multi format, multi axis, multi pen graphing capabilities

    • Complete control interface to equipment

    • Calibration support for internal or external traceable calibration

    • Multi test automated sequencing

    • Password Protection

    • Real time calculation of all required values

    • Data storage for export to external data analysis

    • Ethernet, MODBUS and SQL server communications

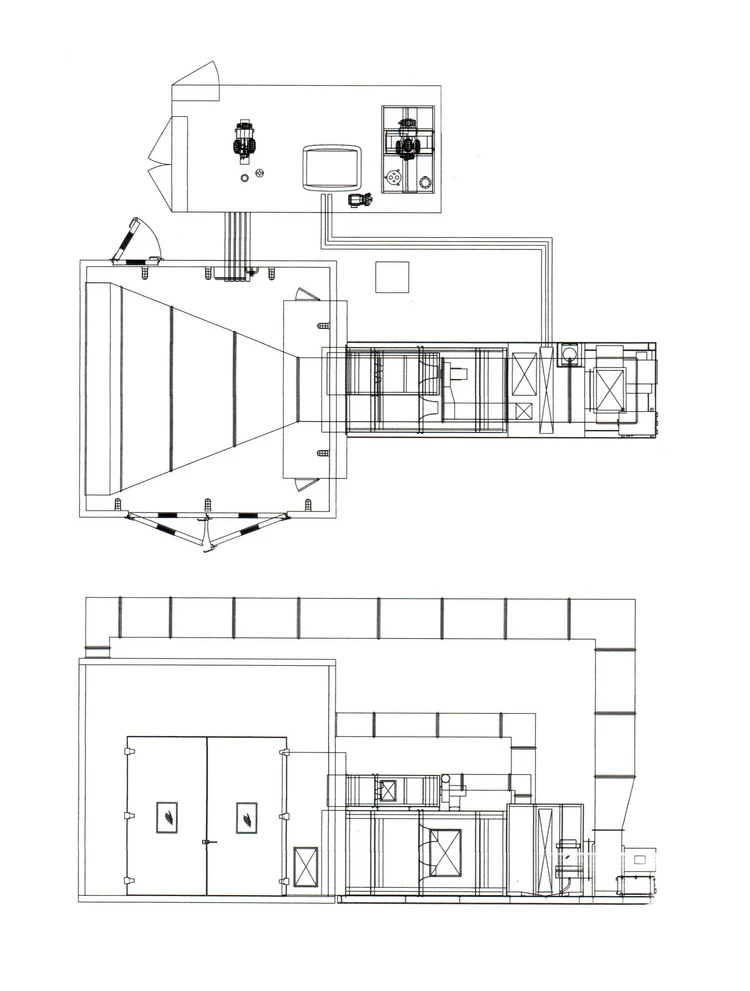

Calorimter chamber drawing
