Air Handling Units

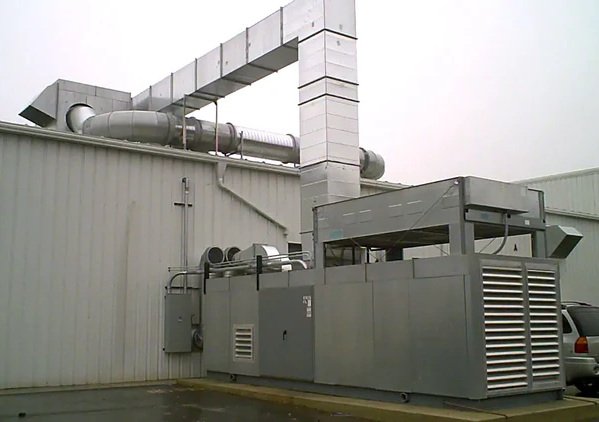

One of our outdoor process skids with electrical panel and air cooled condensers.

Overview

Precision controlled air supply systems for testing and/or process applications. Conditioned dry air supply for sensitive applications requiring low dew-point or precise humidity control. Used as a stand alone system or integrated into an existing air conditioning system. Capable of prolonging test cycle duration, mitigate coil freeze-up for long term “cold testing” procedures. Ideal for applications involving high or variable thermal loading conditions.

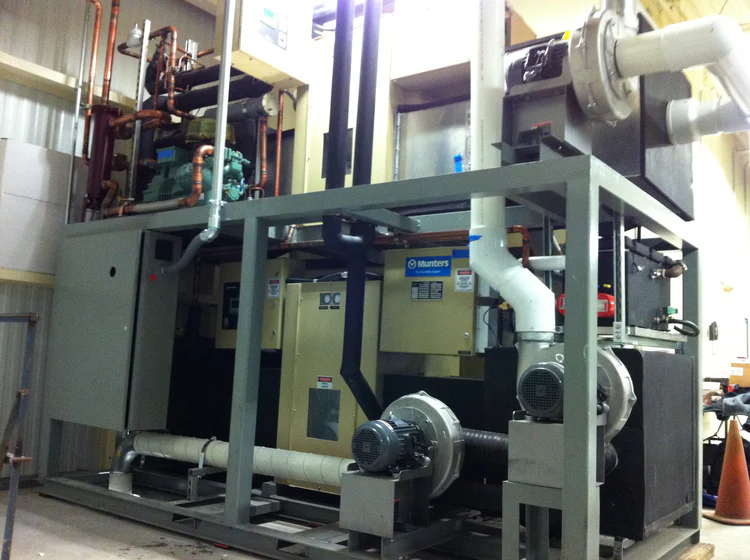

Process skid with blowers and electrical panel.

Features

  • Programmable Temperature and Humidity

  • Ability to provide supply air dew points

  • Available in water or air cooled condenser packages

  • Open , closed or variable process flow schemes available

  • System can supply conditioned air for single application or configured to control air supply conditions to several systems simultaneously

  • Cooling packages include standard refrigeration and secondary “brine” loop for precision cooling control tolerances of +/- 0.25 F

Technical Specifications

  • Temperature Range: -70 to 350°F
    Temperature Sensor: RTD or Thermocouple
    Humidity Range: 20 to 90% RH
    Extended Range : 10 to 95% RH
    Dewpoint: To < -40 F
    Humidity Sensor: RH Capacitive Element
    Airflow: 600 to 150,000+ cfm

    • Manual or fully automatic PLC-based control algorithms

    • Real time display of measured and calculated variables,

    • Multi format, multi axis, multi pen graphing capabilities

    • Complete control interface to equipment

    • Calibration support for internal or external traceable calibration

    • Multi test automated sequencing

    • Password Protection

    • Real time calculation of all required values

    • Data storage for export to external data analysis

    • Ethernet, MODBUS and SQL server communications

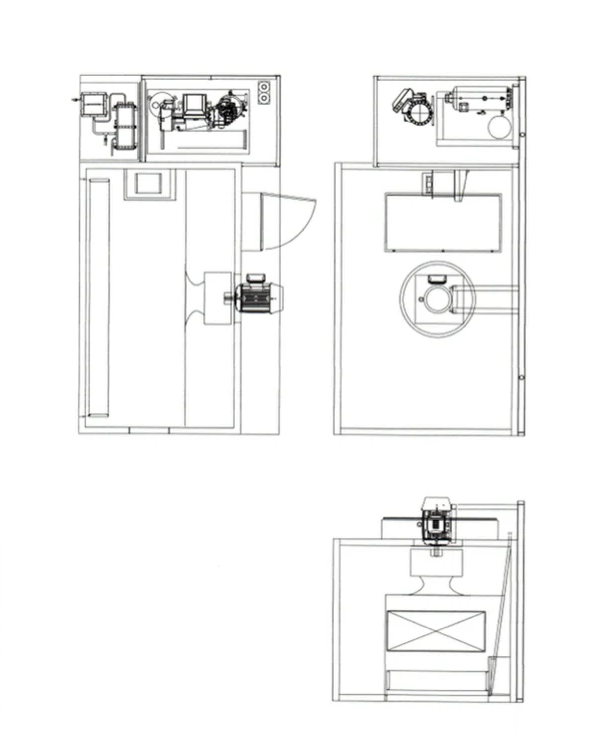

Drawing of an air-handling-unit (AHU).
