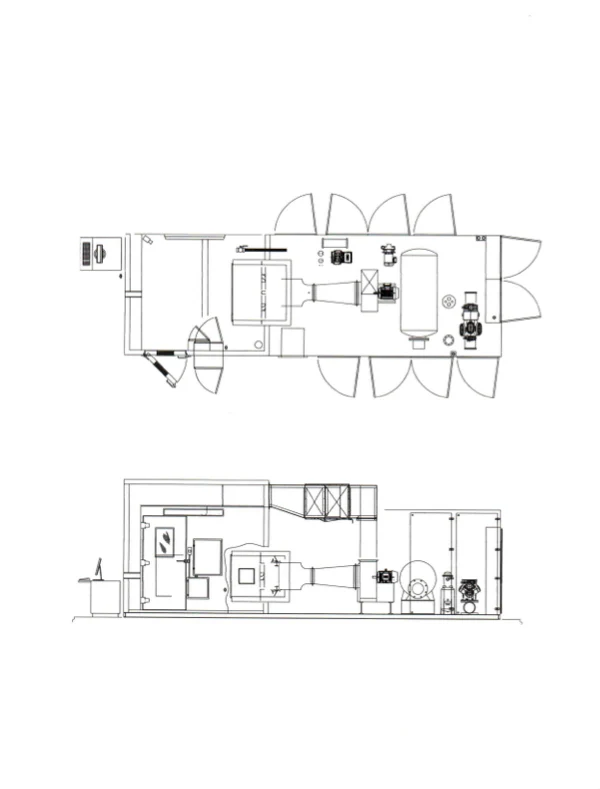

Air to Refrigerant Calorimeter
Radiators | Heater Cores | Brazed Plates

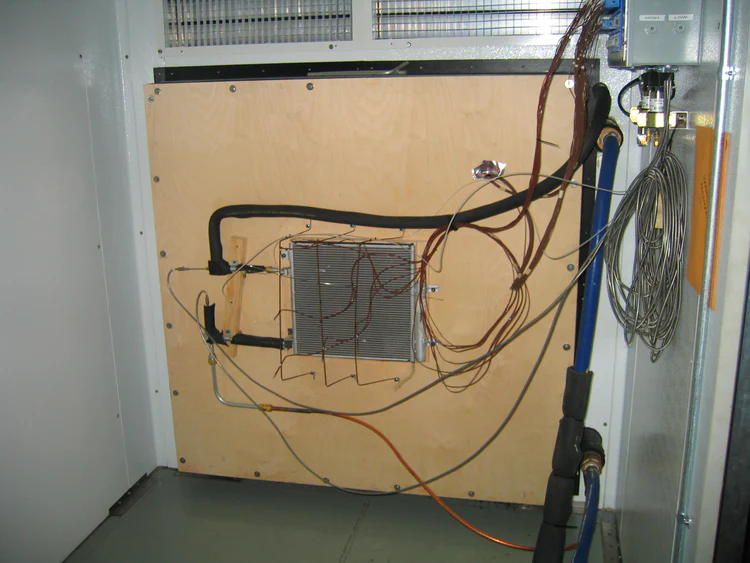

Evaporator Calorimeter
Exactly measure, confirm, and report heat transfer characteristics
10:1 turndown on all control variables
Precisely control flow and temperature supplies to achieve testing
Used as a stand alone system or integrated with other supporting modules including heater core and blower assembly (automotive applications)
Options available for determining “oil in circulation” values
Condenser Calorimeter
10:1 turn-down on all control variables.
Open or closed loop design.
Closed loop airflow control maximizes operational capabilities and performance range across UUT
Use as a stand alone system or integrate with other supporting modules including radiator and /or oil cooler
Technical Specifications
-
Capacity: Up to 200,000+ BTU/H
Airflow Range: 50 to 1000 cfm
Air Temperature Range: -40F to 160 F
Airflow Humidity Range: 10 to 95% RH
Refrigerant Suction Pressure: Based on Refrigerant
Refrigerant Suction Temperature: Based on Refrigerant
Refrigerant Liquid Pressure: Based on Refrigerant
Airflow Measurement: Ashrae 41.2 Meter or V-Cone or pitot array
Refrigerant Flow Measurement: Coriolis
Temperature Measurement: RTD -
Capacity: 10,000 to 240,000+ BTU/H
Airflow Range: 500 to 10000 cfm
Air Temperature Range: 0F to 250F
Refrigerant Discharge Pressure: Based on Refrigerant
Refrigerant Discharge Temperature/Superheat/Subcool: Based on Refrigerant
Airflow Measurement: Ashrae 41 Meter, V-Cone or pitot array
Refrigerant Flow Measurement: Coriolis
Temperature Measurement: RTD -
Fully automatic PLC-based control algorithms
Real time display of measured and calculated variables,
Multi format, multi axis, multi pen graphing capabilities
Complete control interface to equipment
Calibration support for internal or external traceable calibration
Multi test automated sequencing
Password Protection
Real time calculation of all required values
Data storage for export to external data analysis
Ethernet, MODBUS and SQL server communications
