Chiller Packages

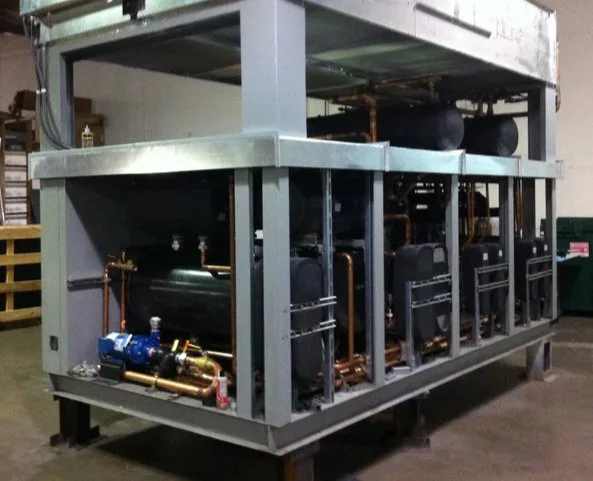

Chiller skid

Overview

Q Corporation provides a wide range of chilling, temperature control (heat/cool), reservoir pump tank packages for the testing and process industries. Used as a stand alone system or integrated into an existing conditioning system for added or “boost” capacity. Ideal for applications involving variable thermal loading conditions. Refrigeration packages include Standard direct expansion, compound, and cascade design. Robust multiple screw (or reciprocating) refrigeration compressor rack for increased turn-down, modulation, and energy economy. Refrigerant systems include R-22, R-404A, R-410A, Suva – 95. Transfer fluids include water, glycol, Syltherm & Dow Therm Solutions.

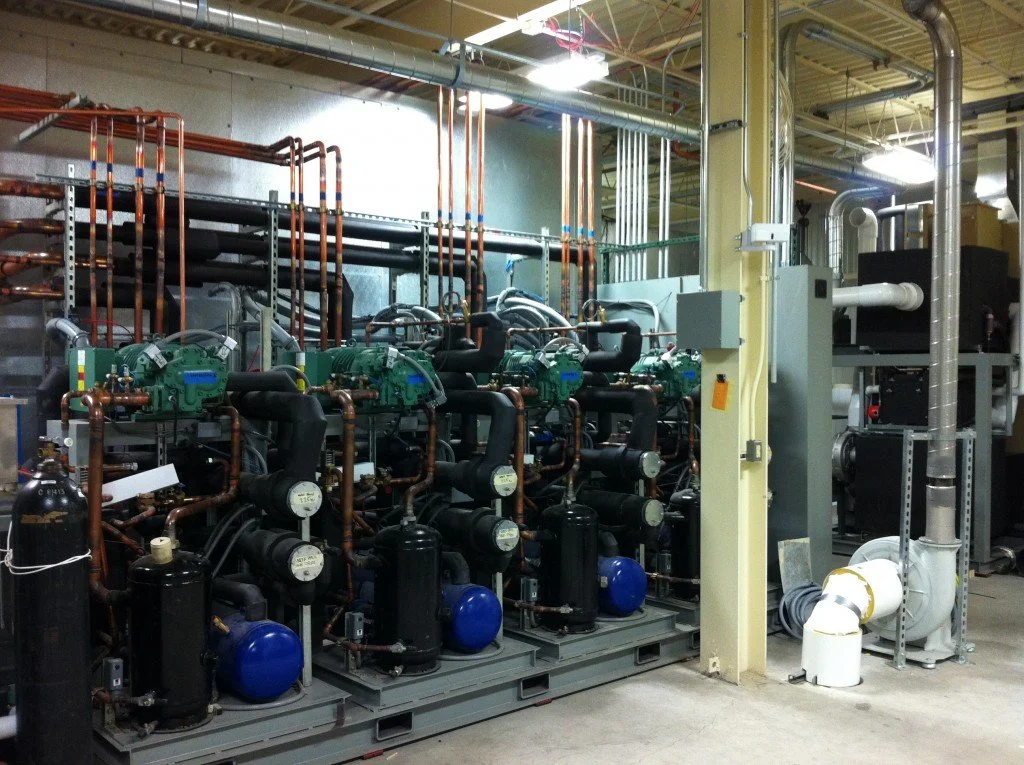

Chiller system

Features

  • Multiple performance packages available contingent on low / high end temperature requirements, temperature transition rates and capacity requirements.

  • Open or enclosed skid frame packages available.  For enclosed systems, optional wall mounted sound attenuation panels available.

  • Control options include remote sensor placement to monitor key process parameters at critical location.  Cascade control architecture enables placement of chillers in distant location.

  • Wide range of chilling, temperature control (heat/cool), reservoir pump, tank equipment and systems for your specific process requirements.

  • Additional options include: Custom paint colors, Outdoor installation packages, Mountable casters for “portable” systems, Once-through cooling flow scheme.

Technical Specifications

  • Liquid Supply Range: -70 to 200°F
    Capacity: 20 to 600+ Hp
    Mechanical Cooling: Air or Water Cooled

    • Manual or fully automatic PLC-based control algorithms

    • Real time display of measured and calculated variables,

    • Multi format, multi axis, multi pen graphing capabilities

    • Complete control interface to equipment

    • Calibration support for internal or external traceable calibration

    • Multi test automated sequencing

    • Password Protection

    • Real time calculation of all required values

    • Data storage for export to external data analysis

    • Ethernet, MODBUS and SQL server communications

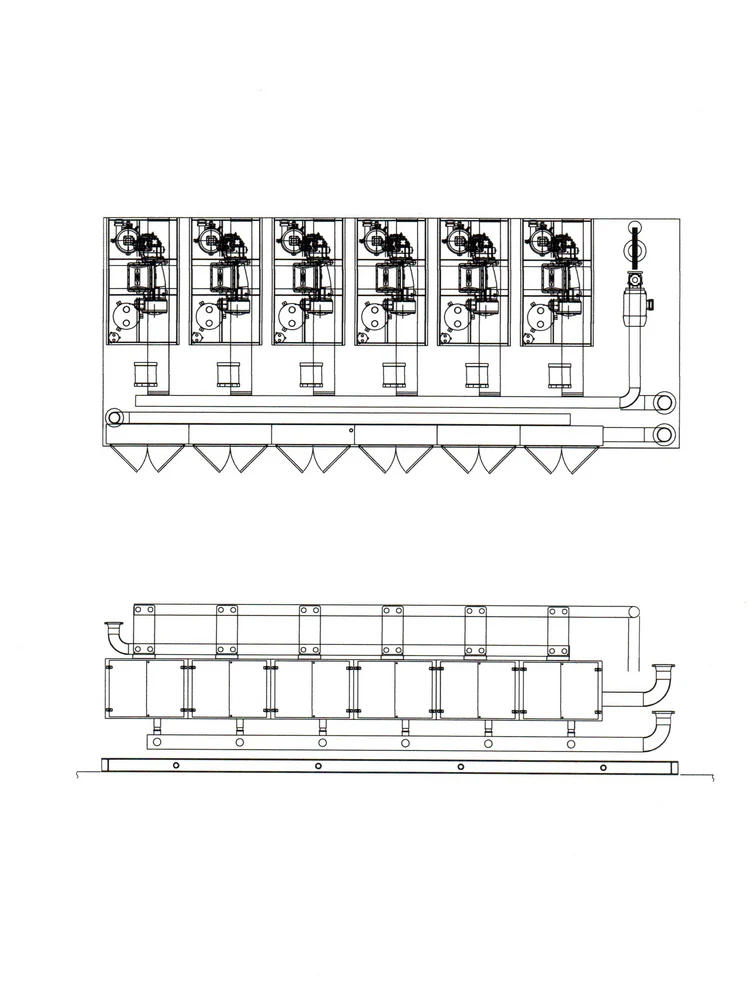

Technical engineering drawing of one of our process skids.
