Extreme
Temperature/Humidity

Front entrance to one of our chambers.

Overview

Quantify long term effects of extended operation under cold soak conditions, freeze/thaw testing, deep freeze cold storage, etc. This testing is ideal for automotive, truck, agricultural, motor sports, computer, and pharmaceutical applications.

Features

  • Chamber can be integrated with external testing equipment systems including servo actuated and electro-dynamic shakers

  • Optional wall mounted sound attenuation panels available, for semi-anechoic sound testing

Technical Specifications

  • Temperature Range
    -100°F to 250°F

    Temperature Sensor
    RTD or Thermocouple

    Humidity Range
    20 to 90% RH

    Extended Range
    10 to 95% RH

    Humidity Sensor
    RH capacitive element

    Airflow
    Variable – Contingent on room size

    • Manual or fully automatic PLC-based control algorithms

    • Real time display of measured and calculated variables,

    • Multi format, multi axis, multi pen graphing capabilities

    • Complete control interface to equipment

    • Calibration support for internal or external traceable calibration

    • Multi test automated sequencing

    • Password Protection

    • Real time calculation of all required values

    • Data storage for export to external data analysis

    • Ethernet, MODBUS and SQL server communications

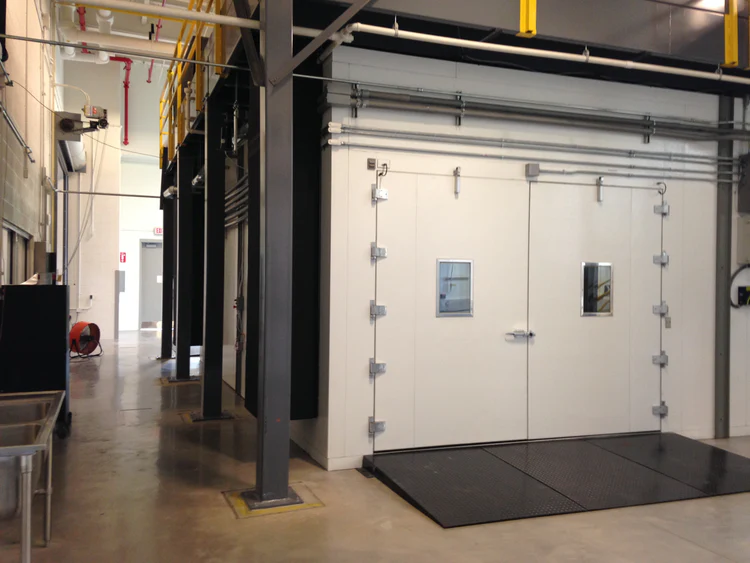

Image of one of our testing chambers.
