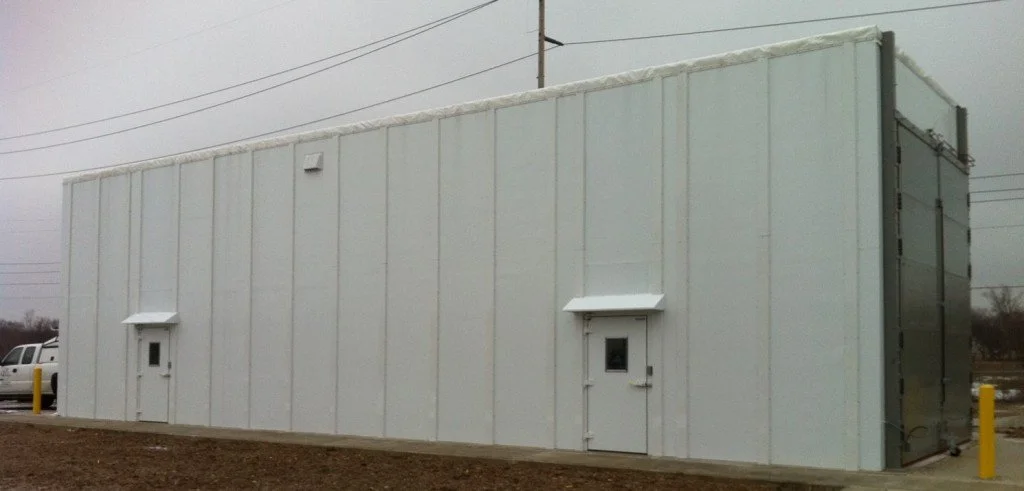

Full Vehicle Testing

Overview

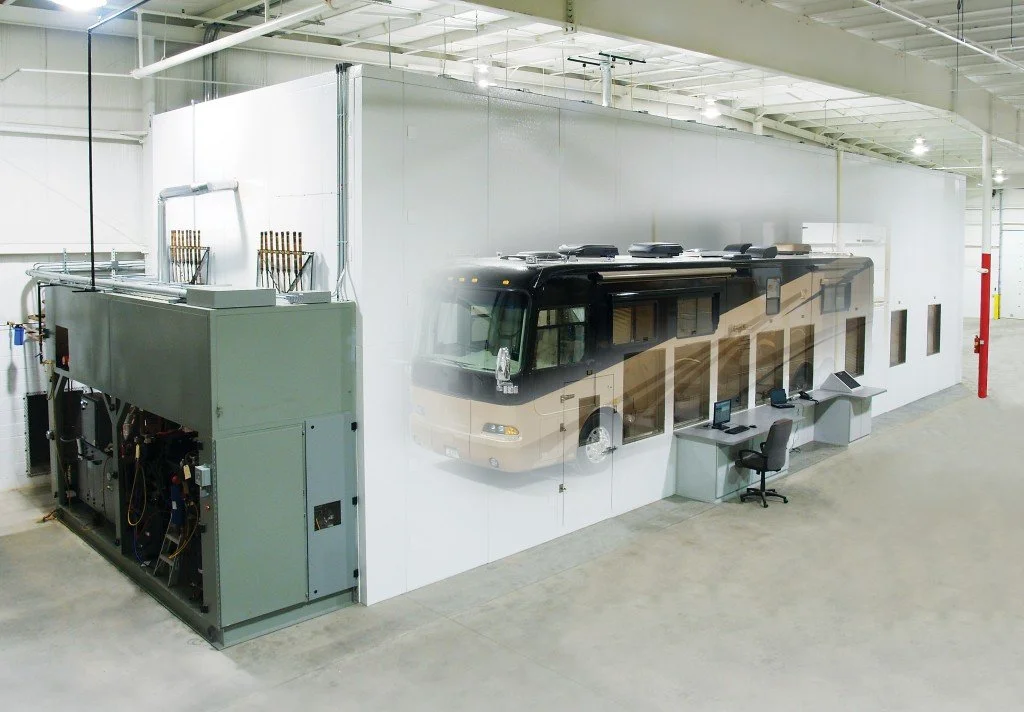

Testing for automotive, truck, and agricultural testing needs. Can quantify long term effects of extended operation under cold soak conditions, freeze/thaw testing, deep freeze cold storage. Also can provide testing for vehicle corrosion, emissions, solar load, and integration with chassis dynamometer test equipment. Single vehicle to multi-Class 8 configuration.

Features

  • Multiple performance packages are available depending on low end temperature requirements, transition rates, live load values, humidity requirements and total mass of test article

  • Water or air cooled condenser refrigeration systems available

  • Direct expansion refrigeration system standard, options available for secondary “brine” conditioning for added control capabilities

  • Chamber can be integrated with external testing equipment systems including servo actuated and electro-dynamic shakers

  • Optional wall mounted sound attenuation panels available, for semi-anechoic sound testing

  • Available in Class 1 Div 1 construction

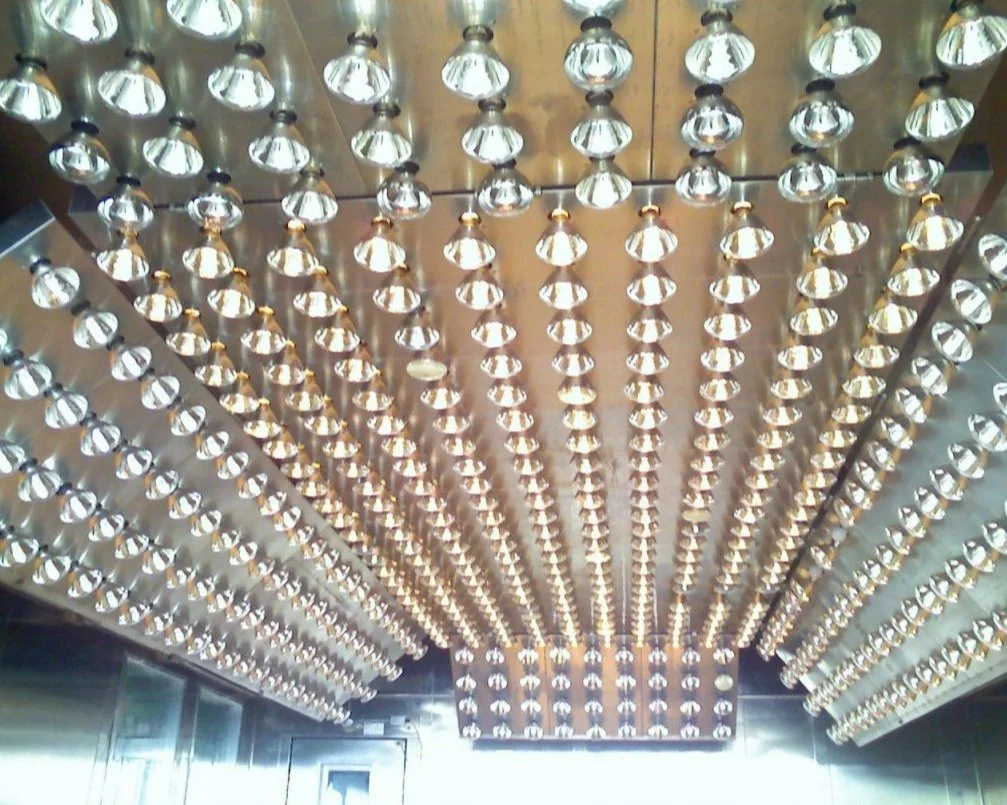

Solar array for testing in a drive-in vehicle chamber.

Infrared Solar Array

Ideal for simulating a directed radiant “heat load” environment.  Reproduce and simulate daily cycle of solar conditioning and heat intensity from sunrise to sunset. Ideal for climate control testing.  Perform “body” or “exterior” test studies at varying loads and qualify effects of long term heat exposure under varying conditions.

Features

  • Multiple zones of control. Vary solar heat load intensity based upon a specific location or UUT profile.

  • Optional “side” and “frontal” profile adjustment enables pinpoint directional placement of heat load on body test structure.

  • Manual or automated vertical adjustment of solar bank enables an unlimited selection of height placement per vehicle standing profile.  Fixed placement arrays are also available.

  • “Portable” or “Moveable” systems available. Caster mounted fixtures designed for ease of transport into and out of test environment.

  • Customized bulb placement, spatial orientation and zones of control available per customer requirement.

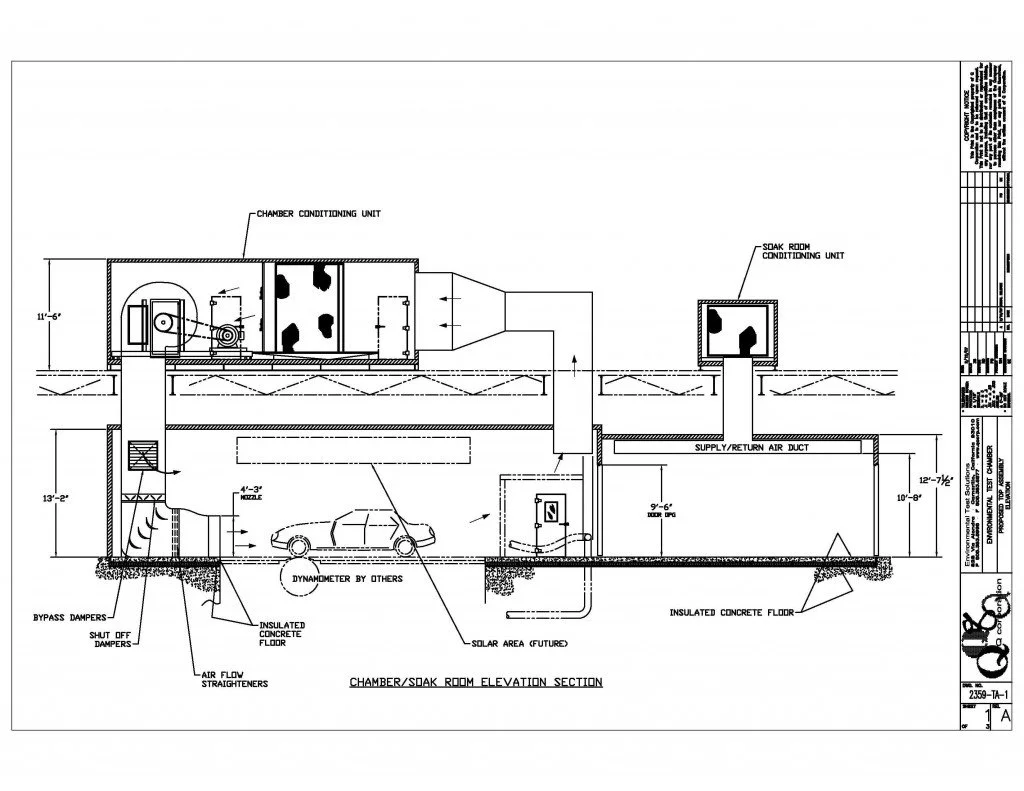

Emissions and Cold Start/Soak Testing

Full vehicle emissions testing programs, including Federal Testing Procedures (FTP), Supplemental Federal Testing Procedures (SFTP), light to medium duty truck testing. 48” or 72” integrated chassis dynamometer, with velocity road speed fan simulation. Fixed or movable wheel base, front, rear or four (4) wheel drive and Up to 450 Hp per Roll. Optional connecting soak room maximizes run time and test schedule. Full solar spectrum simulation with programmable zone. Fuel Tank Temperature management (FTTM) and “Hot Road” simulation available.

Can quantify long term effects of extended operation under cold soak conditions. Performs vehicle “defrost” and “climate control” testing.

Technical Specifications

  • Temperature Range: -100 to 250°F
    Temperature Sensor: RTD or Thermocouple
    Humidity Range: 20 to 90% RH
    Extended Range : 10 to 95% RH
    Dewpoint: To < -40 F
    Humidity Sensor: RH Capacitive Element
    Airflow: 600 to 150,000+ CFM

  • System Pictured: 22ft L x 12ft W
    Profile Adjustment
    Standard: Fixed
    Optional: Variable
    • Vertical – 3ft to 6ft
    • Front / Rear: 45º from ceiling plane
    • Side/Wings: 45º from ceiling plane
    Lights: 250 Watt IR bulbs
    Bulb Placement: Standard: One-1 Foot Centers
    Zones of Control: Variable

  • Internal Dimensions (Typical):
    Main: 50’L x 26’W x 13’2”H I.D.
    Soak: 44’L x 28’W x 9’ 10”H I.D.

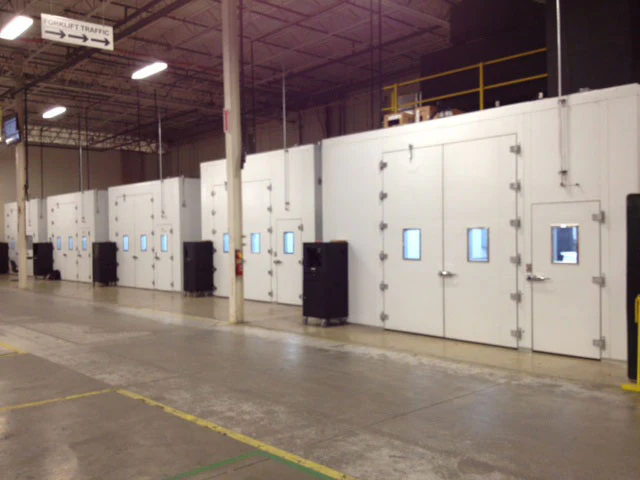

    Doors (Typical):
    12’ W x 9’6” H Vehicle

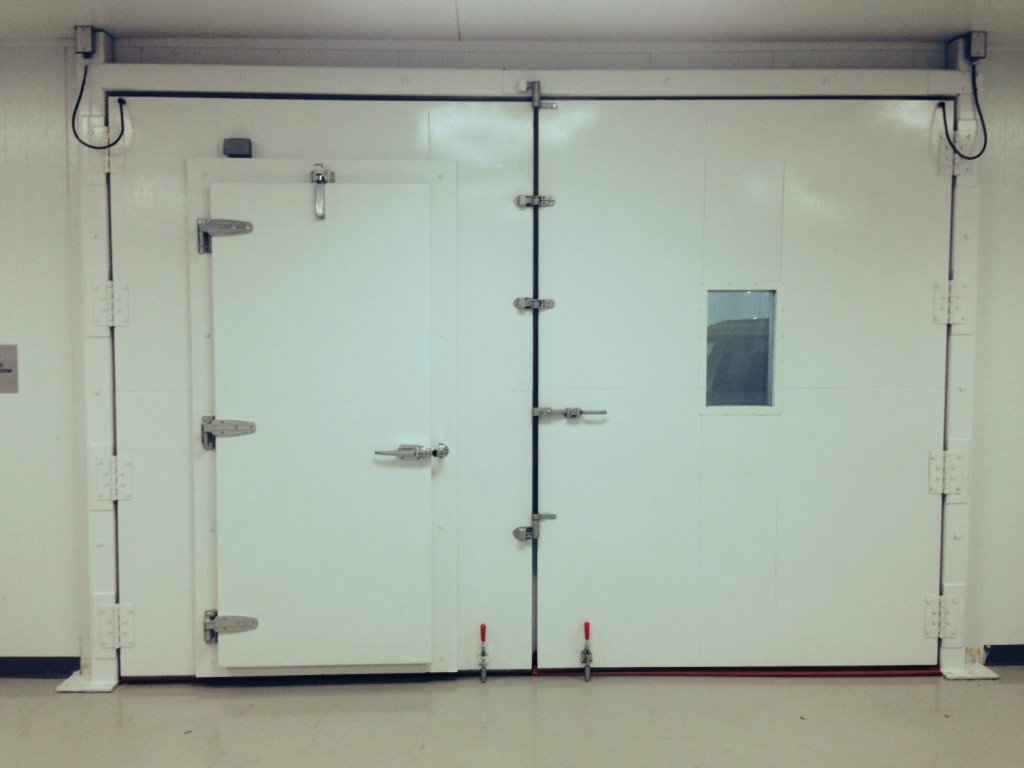

    3′ W x 7′ H Personnel access w/ airlock
    6’W x 7’L x 9’4” H Ante Room
    Dry Combustion Air Supply: 1,000 cfm standard

    • Manual or fully automatic PLC-based control algorithms

    • Real time display of measured and calculated variables,

    • Multi format, multi axis, multi pen graphing capabilities

    • Complete control interface to equipment

    • Calibration support for internal or external traceable calibration

    • Multi test automated sequencing

    • Password Protection

    • Real time calculation of all required values

    • Data storage for export to external data analysis

    • Ethernet, MODBUS and SQL server communications
