Rain/Snow
Chamber

Overview

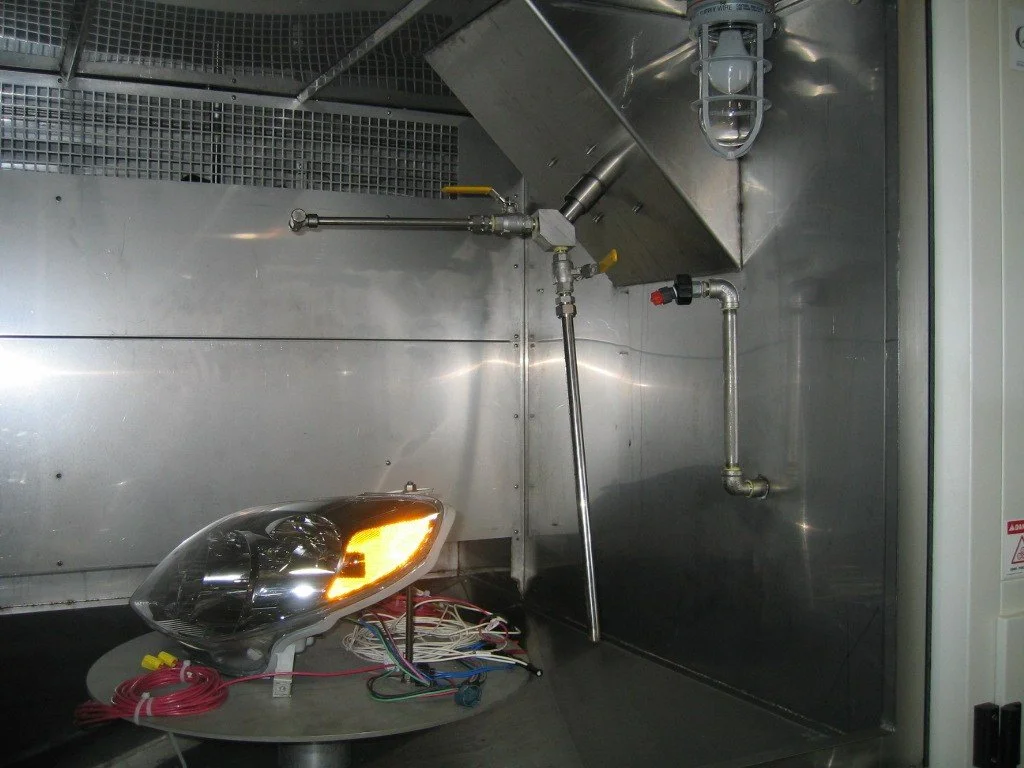

Designed to test effects of water intrusion on a component or system that is routinely exposed to moist, damp and wet environments. Test Capabilities include: Moisture Test, Sprinkling Test, Hose Car Wash Test, High Pressure Car Wash Test, Drizzle Test. Ideal test equipment for vehicle head lamps and sealed housings and enclosures.

Features

  • Variable pressure setting and flow capacities

  • Temperature control of ambient air surrounding UUT

  • Rotating turntable with product mounting surface in chamber to assure 360° rotation and complete coverage

  • Large viewing windows

Technical Specifications

  • Temperature Range: 10 to 35 °C
    Control Stability: ±2.0 °C
    Maximum Flow: Variable – Based on Specification
    Flow: turn down: 10:1
    Maximum Pressure: Variable – Based on Specification
    Control Stability: +/- 2% of Reading

  • Temperature Range: 20 to 50 °C
    Control Stability: ±2.0 °C

    • Manual or fully automatic PLC-based control algorithms

    • Real time display of measured and calculated variables,

    • Multi format, multi axis, multi pen graphing capabilities

    • Complete control interface to equipment

    • Calibration support for internal or external traceable calibration

    • Multi test automated sequencing

    • Password Protection

    • Real time calculation of all required values

    • Data storage for export to external data analysis

    • Ethernet, MODBUS and SQL server communications

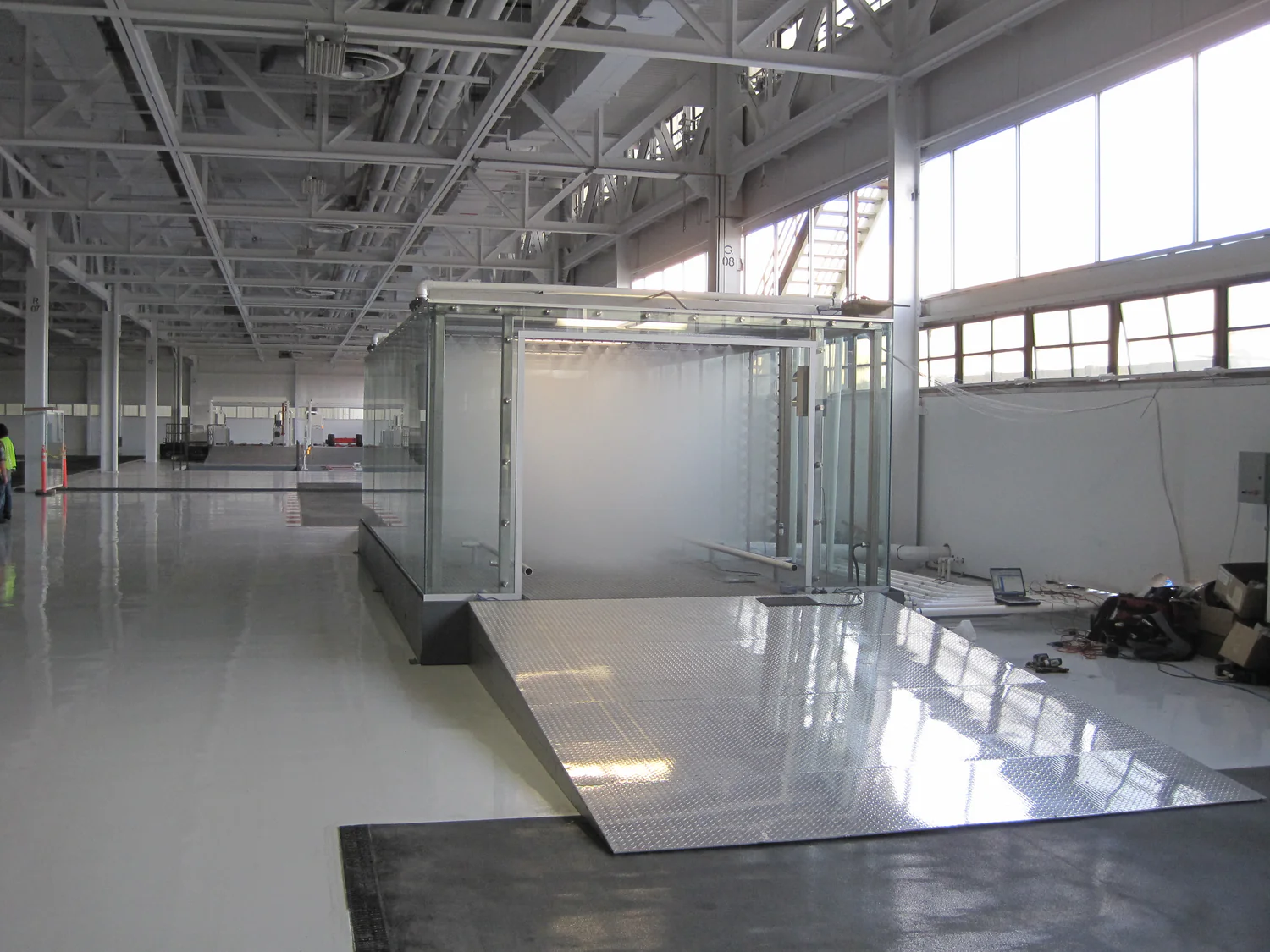

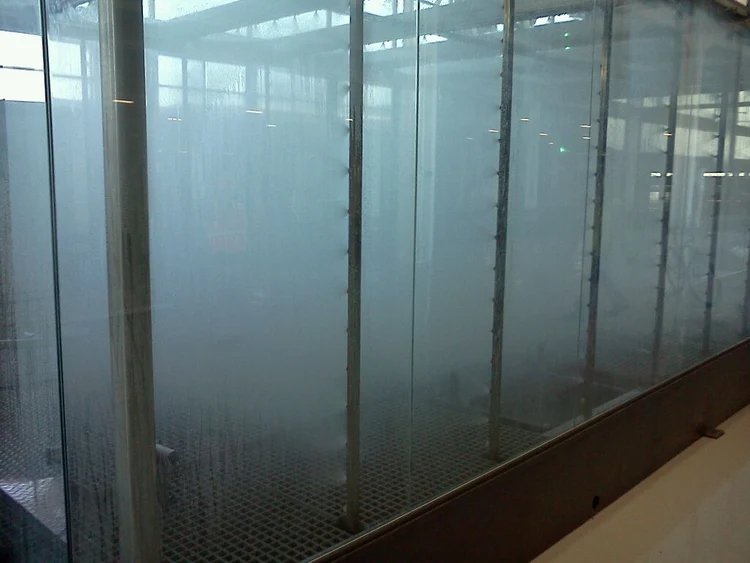

Fluid intrusion testing chamber
