AHRI 210/240

Performance Rating of Unitary Air-conditioning & Air-source Heat Pump Equipment

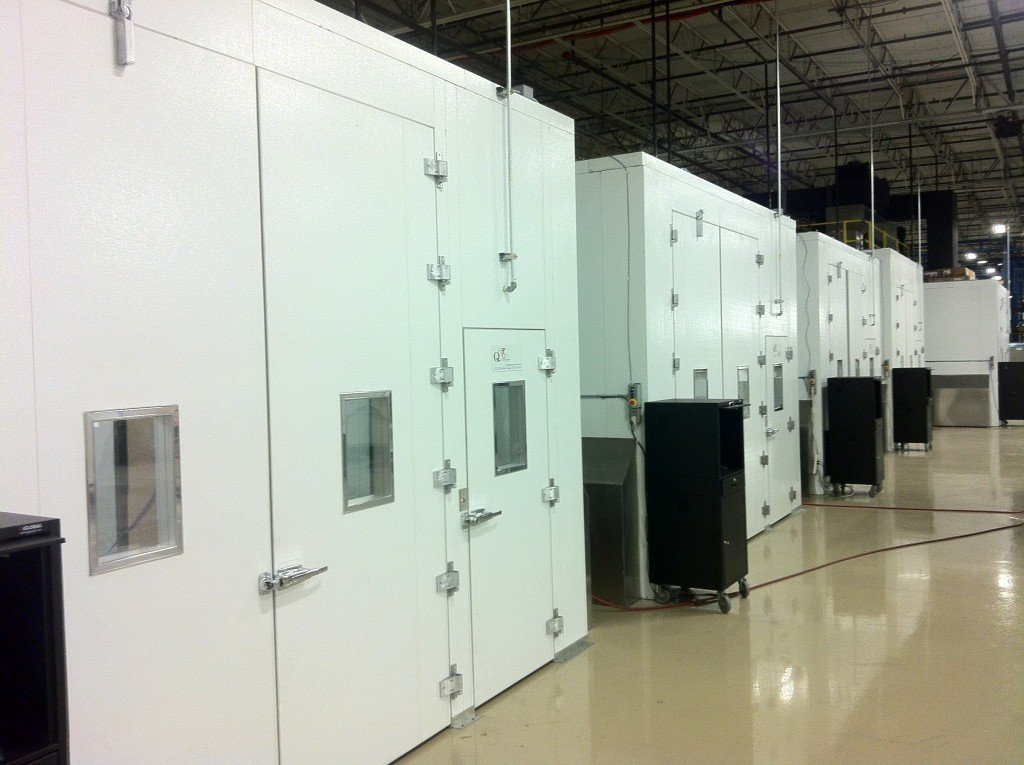

Turnkey delivery including design, manufacture, installation and commissioning of complete test facilities built to AHRI 210/240

Packaged and Split System Configurations

  • Air cooled, water cooled, and evaporative cooled outdoor units

  • Open and closed duct outdoor testing

  • Horizontal and vertical product orientation

  • Fully compliant inlet and outlet indoor DOE boxes

  • Integrated isolation dampers, sampling trees, outlet air mixer, thermopiles

ASHRAE / AHRI Compliant Testing

  • Full series of air conditioning mode AHRI testing

  • B test to C test (dry coil) transitions in less than an hour

  • Advanced load compensation algorithms for fully automatic D test (cyclic) compliant data

  • Automated running and calculation of SEER rating

  • Full series of heat pump mode AHRI testing, including H4 testing

  • Automated running and calculation of HSPF and defrost performance

Technical Specifications

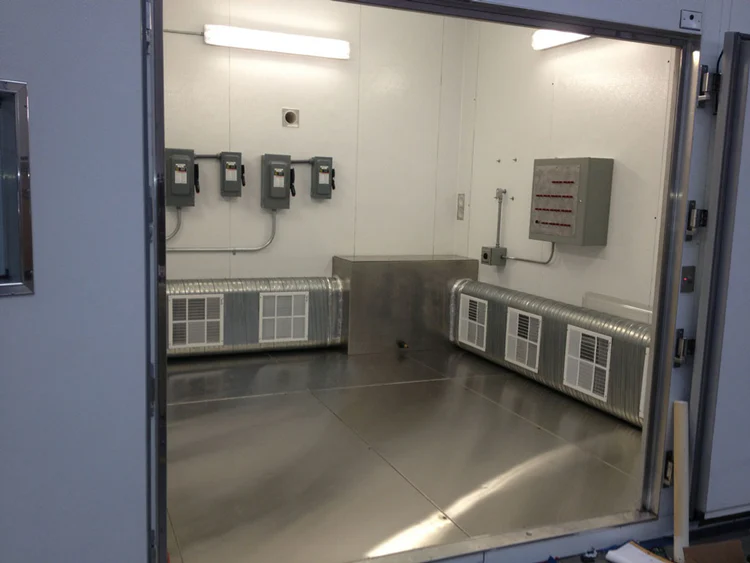

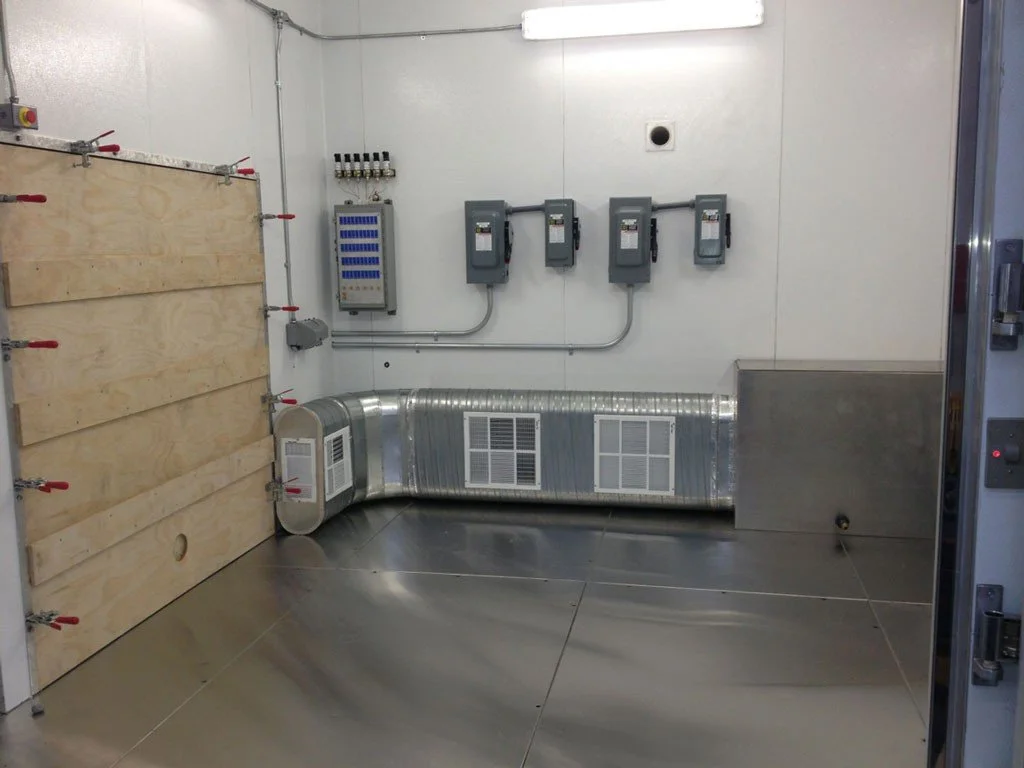

    • Indoor & Outdoor Room Construction (Standard)

    • Precision Room Conditioning Equipment (Standard)

    • ± 0.2 F DB/ ± 0.5 F WB (Standard).

    • ± 0.1 F DB/ ± 0.2 F WB (Optional).

    • Indoor & Outdoor Code Tester w/ Psychrometers

    • Complete Controls, Instrumentation & Automation

    • Remote monitoring and alarm functions

    • 1 Year Warranty w/ on-call customer support

    • Operator Training

  • Temperature Range:

    • 35 to 95F (typical)

    Humidity Control:

    • 20 to 90% RH / 40 to 80F DP (typical)

  • Temperature Range:

    • 0F to 115F (typical)

    • -40F to 140F (available)

    Humidity Control:

    • 20 to 90% RH / 20 to 90F DP (typical)

    • Unit Under Test Power Supply & Power Analyzers

    • Fluid/Brine Supply Module for 13256-1 testing

    • Flexibility to add Analog or Digital data channels

    • Preventative maintenance & Service Programs

  • Code Tester / Airflow Meter

    • Geometry built according to ASHRAE 41.2

    • Integral to ANSI/AHRI 210/240 Testing

    • Variable speed blower to control based on airflow or pressure.

    Psychrometers

    • Geometry built according to ASHRAE 41.6 - 2021 and RP-1460

  • Base package includes a full featured LabVIEW based interface

    • Real time display of measured and calculated variables,

    • Multi format, multi axis, multi pen graphing capabilities

    • Complete control interface to equipment

    • Calibration support for internal or external traceable calibration

    • Multi test automated sequencing

    • Password Protection

    • Real time calculation of all required values

    • Data storage for export to external data analysis

    Optional Formats

    • Customer provided HMI

    • Touch screen interface

    • Ethernet, MODBUS and SQL server communications

AHRI 210 240 Cover
